Suzuki S-1800 Sonar

Suzuki-S-1800- Optional display
- 80, 150 and 180 kHz frequency
- Search light or sector scan
- Designed to fit in small to mid-sized fishing vessels



Model Name S-1800 H180 H 80 H 800 H 150
Power Supply DC
20-30 V
20-30 V
Power consuption
110 W
Display Optional
Weight on hull unit 44 kg
50.5 kg
Weight on control unit 7 kg 10 kg
Sonar type
Searchlight sonar
Sector scanning/searchlight sonar
Soundome stroke 200-400 mm
Stroke period 10 sec (400 mm stroke 24 V)
Raise and lower Automatically related to power ON/OFF
Range 20-2000 m 40-2000 m
Power output
1.2 kW
1.2 kW 2.2 kW 2.2 kW
Tilt angle +/- 5° to - 90° at 1° step
Display mode
Sonar mode, off-center mode, bottom scan mode, sounder mode, split screen, historical display/compressed display, historical display/a-scope, NAV display
Screen notation Range, range scale, tilt, tilt diagram, sector angle, bearing center angle, ring marker, interference reduction, navigation data, cross cursor, compass display, seed, LAT/LON data, gain/TVG graph, colour scale, water temperature,
scanning image, position of vessel, VRM, depth
External input (Option): NMEA 0183, remote controller and trigger signal
External output
(Option): LAT/LON of target, VGA and trigger signal
Service Available in most major harbours, world-wide through extensive dealer network

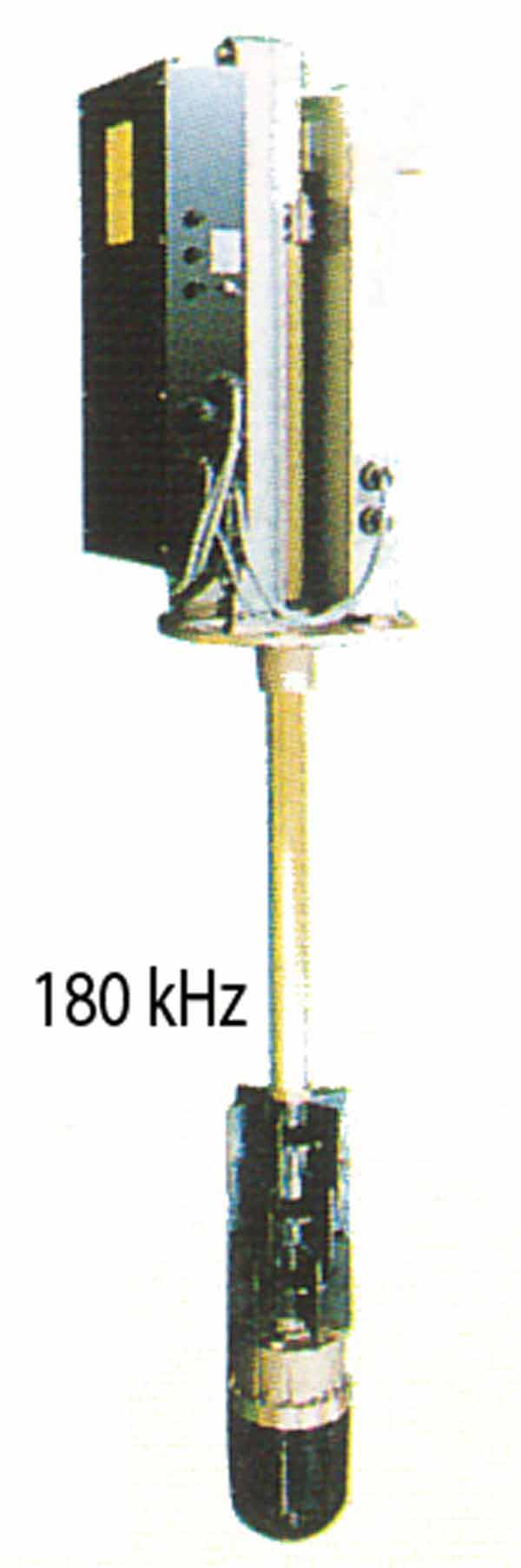

150_bunnutstyr 180_bunnutstyr
