- One frequency 38, 50 or 200 kHz
- 2 kW
- Option: External Printer
- Optional external VGA
- Produced and developed in Norway

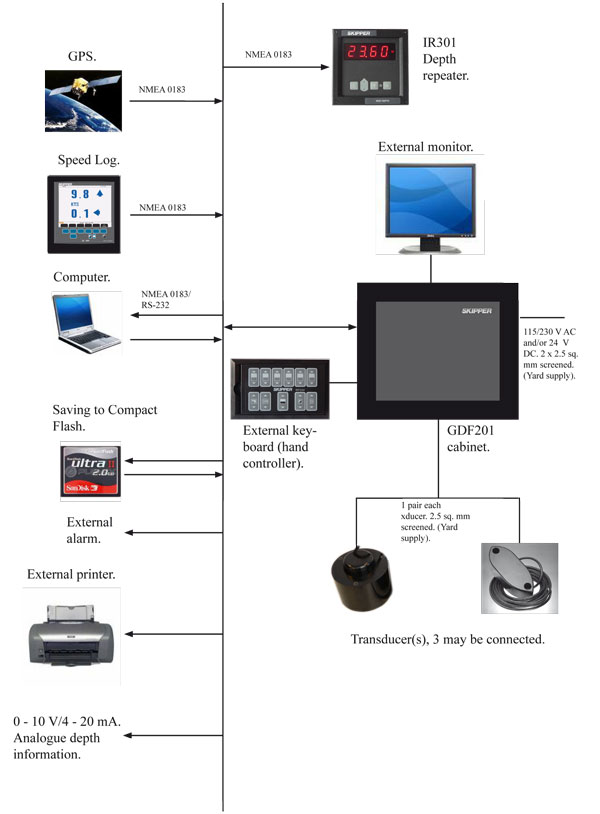

The SKIPPER GDF 201 is a colour fishfinder that could be connected to any optional LCD screen. The fishfinder graphics are continuously shown on the connected LCD. External connectors are provided for optional printer, remote VGA and NMEA in/output.
|
Power Supply
|
AC:115-230 V 50/60 Hz
DC: 20 - 32 V
|
| Power Consumption |
50 W at 24 V, 70 W at 230 V or 115 V
|
| Display |
None, any VGA could be connected |
| Mounting Dimensions |
300 mm wide x 320 mm high |
| Weight on display |
5 kg included brackets
|
| Printer |
External printer, contact SKIPPER |
| Power reduction |
From 1 to 100 % of max |
| Ranges |
Selectable from 0 - 1600 m
|
| Units |
M, br, fm
|
Frequencies
|
38, 50 and 200 kHz
|
| Recomended transducers |
ETF038T 38 kHz 3 kW
ETF38A 38 kHz 2,5 kW
ETF38E 38 kHz 1,2 kW
ETF50D 50 kHz 2 kW
ETF50L 50 kHz 1,2 kW
ETF050BZC 50 kHz 800 W
ZZL-01021 200 kHz 1,5 kW
ETF200FPL 200 kHz 300 W |
| Output power |
1kW, adjustable |
| Depth alarm |
Alarms for shallow and deep water |
| Sound velocity |
Adjustable between 1550 - 1400 m/s |
| PRF |
Max 10/sec |
| Threshold |
Removes 1-7 colours without
decreasing receiver sensitivity |
| Memory |
24 h memory for storage of
recordings over large areas |
| Data output |
- Trigger and bottom-pulses
- Alarm relays
- Analogue 4 - 20 mA, and 0 - 10 V for
depth
- Detected video
- NMEA 0183 (MTW,DBT)
- External VGA
- Printer
|
| Inputs |
- 100/200 pulses for speed
- NMEA 0183 for speed, position, heading
and time
|
| Languages |
English, French, German, Spanish,
Russian, Norwegian |
| Option |
- Remote depth indicators
- Remote keyboard
- Printer
|
